JETOUR T1
The Jetour T1 four-wheel drive version is equipped with a 1.5TD hybrid dedicated engine
key word:
New Energy、Automobile assembly
Category:
Body structure：
Monocoque body
Range (km)：
226/220
Max power (kw)：
187
Max torque (N.m)：
390
Max Speed (km/h)：
180
LxWxH(mm)：
4705*1967*1843
Wheelbase(mm)：
2800
Description
The Jetour T1 four-wheel drive version is equipped with a 1.5TD hybrid dedicated engine and a plug-in hybrid system consisting of P1+P3+P4 three motors, with a comprehensive power of 435 kilowatts and a torque of 840 Newton meters.

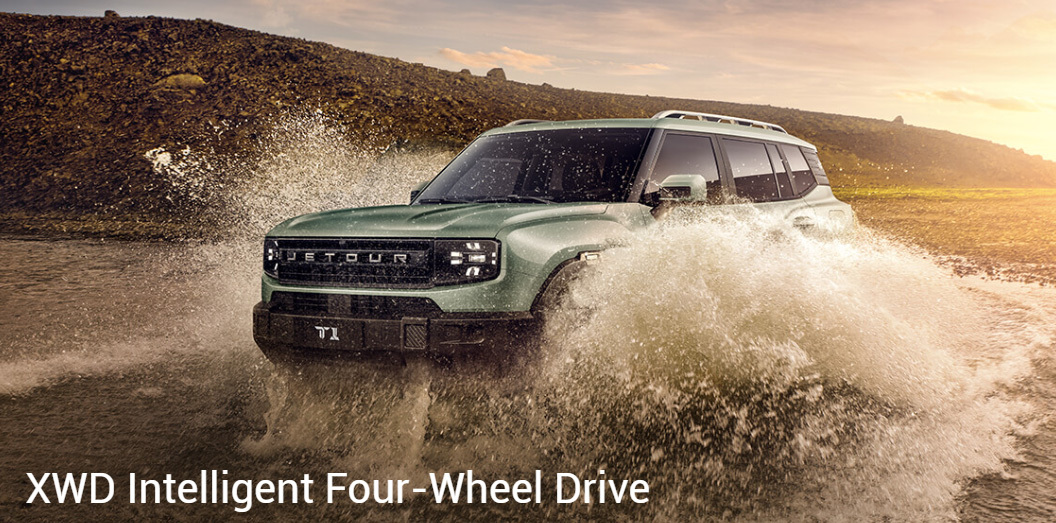

Equipped with a 43.2 kWh battery from CATL, the pure electric range under CLTC conditions is 220 kilometers. In addition, the car is equipped with the XWD fully automatic intelligent four-wheel drive system, providing stronger off-road capabilities．
| Model | 2.0T-8AT Comfortable | 2.0T-8AT Lux | |
| Basic parameters | |||
| Model level | Compact SUV | Compact SUV | |
| Energy type | Gasoline | Gasoline | |
| Engine | SQRF4J20 | SQRF4J20 | |
| Transmission type | 8AT | 8AT | |
| Max speed(K/h) | ≥180 | ≥180 | |
| Official 0-100K/h acceleration (s) | 8.3 | 8.9 | |
| NEDC(L/100K) | 8.75 | 9.18 | |
| Appearance color | ○Carbon crystal black ○New khaki white ○Aviation Silver ○Sand gold color ○Bromolan ○Electroplating green |
○Carbon crystal black ○New khaki white ○Aviation Silver ○Sand gold color ○Bromolan ○Electroplating green |
|
| Interior color | ○Black Orange ○Black green ○black grey |
○Black Orange ○Black green ○black grey |
|
| Body structure | |||
| L(mm)*M(mm)*H(mm) | 4705*1967*1843 | 4705*1967*1843 | |
| Wheelbase(mm) | 2800 | 2800 | |
| Front wheelbase(mm) | 1690 | 1690 | |
| Rear wheelbase(mm) | 1700 | 1700 | |
| Front suspension（mm） | 918 | 918 | |
| Rear suspension（mm） | 987 | 987 | |
| Ground clearance(mm) | 190 | 190 | |
| Body structure | monocoque body | monocoque body | |
| Number of doors (each) | 5 | 5 | |
| Number of seats (PCS) | 5 | 5 | |
| Tank volume(L) | 70 | 70 | |
| Trunk capactiy (L) | 574 | 574 | |
| Curb weight(kg) | 1723 | 1811 | |
| Engine | |||
| Engine model | SQRF4J20 | SQRF4J20 | |
| Dispalcement(mL) | 1998 | 1998 | |
| Air intake form | Supercharged intercooling | Supercharged intercooling | |
| Cylinder arrangement form | Inline | Inline | |
| Number of cylinders (pcs) | 4 | 4 | |
| Number of valves per cylinder (pcs) | 4 | 4 | |
| Compression ratio | 10.2:1 | 10.2:1 | |
| Cylinder diameter (mm) | 80.5 | 80.5 | |
| Travel distance (mm) | 98.12 | 98.12 | |
| Maximum power (kW) | 187 | 187 | |
| Maximum net power (kW) | 180 | 180 | |
| Maximum power speed (rpm) | 5500 | 5500 | |
| Maximum torque (N · m) | 390 | 390 | |
| Maximum torque speed (rpm) | 1750—4000 | 1750—4000 | |
| Fuel form | gasoline | gasoline | |
| ROZ | 92# | 92# | |
| Oil supply method | GDI | GDI | |
| Cylinder head material | aluminum | aluminum | |
| Cylinder material | aluminum | aluminum | |
| Transmission | |||
| Number of gears | 8 | 8 | |
| Transmission type | automatic transmission（AT） | automatic transmission（AT） | |
| Chassis steering | |||
| Drive form | 4WD | 4WD | |
| Four wheel drive system | Real time 4WD(BorgWarner) | Real time 4WD(BorgWarner) | |
| Front suspension type | MacPherson Independent Suspension | MacPherson Independent Suspension | |
| Rear suspension type | Multi-link Independent Suspension | Multi-link Independent Suspension | |
| Assistance type | Electric power | Electric power | |
| Vehicle body structure | load-bearing | load-bearing | |
| The chassis shield | ●Metal front cabin guard | ●Metal front cabin guard | |
Note: “●”Standard configuration, “○”Optional, "-": Not included in this configuration
