JETOUR T2
The Jetour T2 is a compact SUV with a plug-in hybrid system
key word:
New Energy、Automobile assembly
Category:

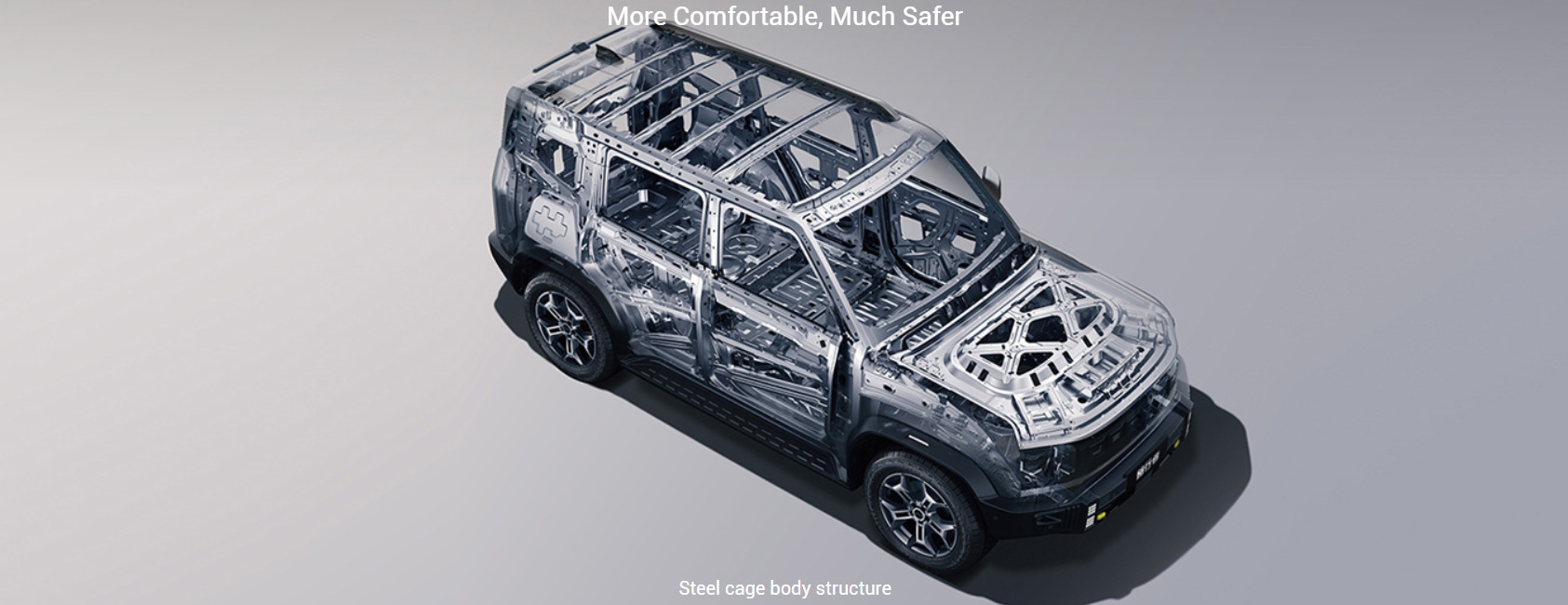

Body structure：
Monocoque body
Range (km)：
206
Max power (kw)：
115
Max torque (N.m)：
220
Max Speed (km/h)：
190
LxWxH(mm)：
4785*2006*1875
Wheelbase(mm)：
2800
Description
The Jetour T2 is a compact SUV with a plug-in hybrid system, rich configurations, and intelligent functions. Its body size is 4785 × 2006 × 1875mm, wheelbase is 2800mm
equipped with permanent magnet synchronous motor and DHT gearbox, equipped with lithium iron phosphate battery, maximum power is 165kW, maximum torque is 390N · m
| Model | JETOUR T2 |
| Basic parameter | |
| Drive type | Timely four-wheel drive (BorgWarner) |
| Vehicle class | A compact SUV |
| Energy type | PHEV |
| Engine | SQRH4J15 |
| Transmission type | 3DHT |
| Body structure | monocoque body |
| Maximum speed (km/h) | 190 |
| NEDC: comprehensive fuel consumption(L/100km) | 0.8 |
| Body | |
| Length (mm)*Width (mm)*Height (mm) | 4785*2006*1875（With spare tire cover） 4612*2006*1875 (No spare tire cover) |
| Wheelbase (mm) | 2800 |
| Front wheel base (mm) | 1685 |
| Rear wheel base (mm) | 1695 |
| Front suspension (mm) | 892 |
| Rear suspension (mm) | 1093 |
| Minimum ground clearance (mm) | 220 |
| Number of doors (each) | 5 |
| Number of seats (PCS) | 5 |
| Tank volume (L) | 70 |
| Curb weight (kg) | 2110 |
| Total mass (kg) | 2485 |

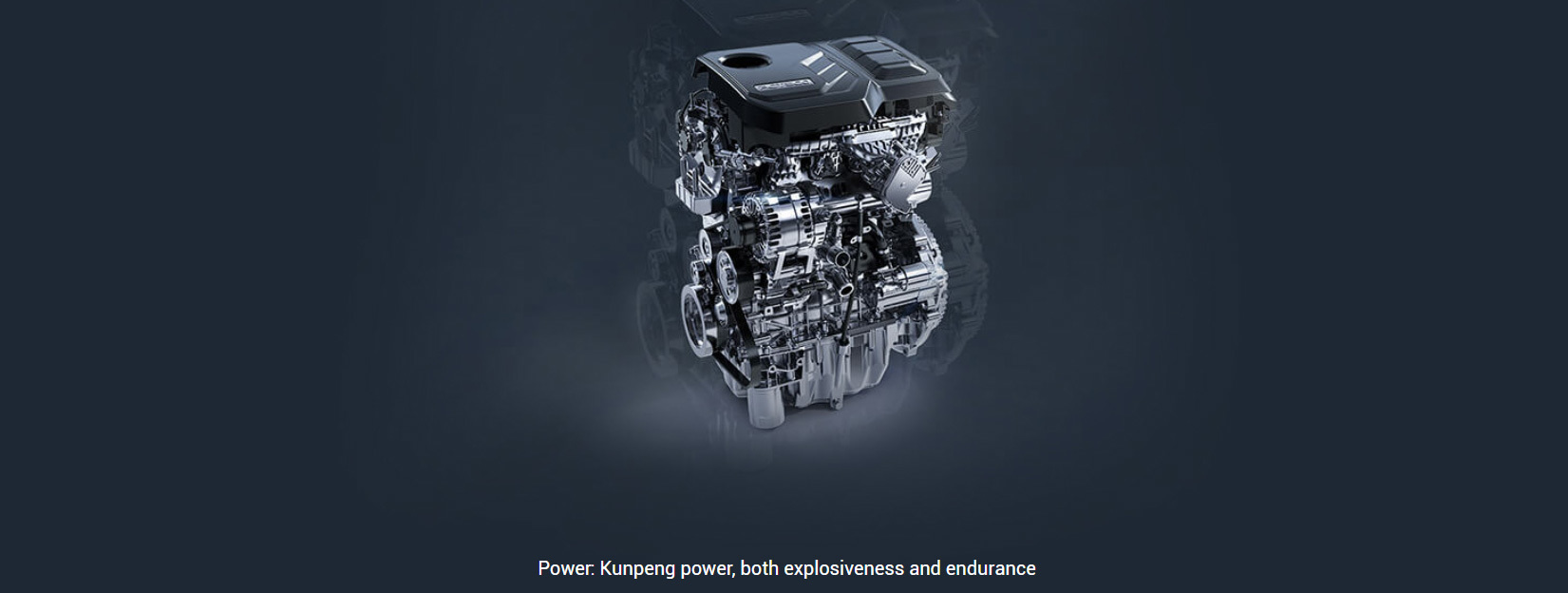

| Engine | |
| Engine type | SQRH4J15 |
| Displacement (mL) | 1499 |
| Intake form | Turbo charge intercooling |
| Cylinder arrangement | Inline |
| Number of cylinders (PCS) | 4 |
| Number of valves per cylinder | 4 |
| Compression ratio | 14.5:1 |
| Cylinder diameter (mm) | 72 |
| Stroke (mm) | 92 |
| Maximum power (kW) | 115 |
| Maximum power speed (rpm) | 5200 |
| Maximum torque (N·m) | 220 |
| Maximum torque speed (rpm) | 2500 |
| Fuel form | PHEV |
| Fuel oil label | 92# |
| Oil supply mode | GDI |
| Cylinder head material | aluminum |
| Cylinder block material | aluminum |
